2015 Acura RDX reverse wire
I just got my Vline VL2 installed but the reverse wire isn’t clear- do you happen to have a picture of what wire I’m supposed to splice into? None of the diagrams fit the actual wire on the device. The 28 pin harness has a white wire for pin 20- the 24 pin description has a light blue wire. Both seem thin and not correct.
Last edited by qakewalk; 07-07-2021, 08:50 AM.Tags: None
-
What does the plug at the display look like and how many pins does it have? Seems like you might need to get the reverse signal from there.
If it's a 32 pin, attached is a photo of the plug pinout. You will need to tag it to pin 20. Pin 20 should be a Grey Wire in between 2 other grey wires (Pin 19 and Pin 21).
1 Photo
-
Unfortunately, I didn’t access the display at all- the 2015 RDX only has one display on the dashboard. The middle portion only has an LCD readout for a few items.

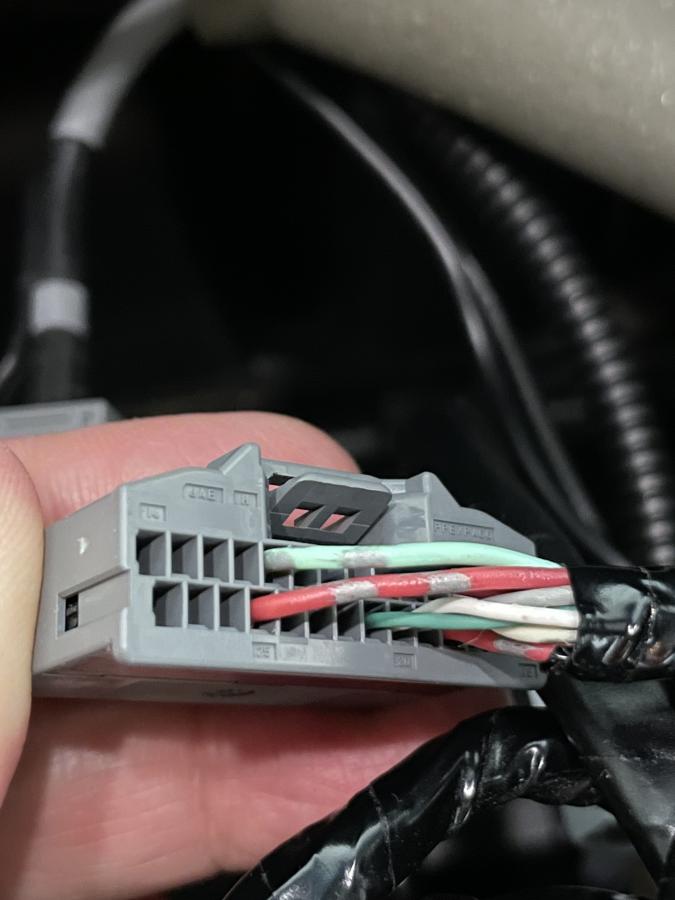

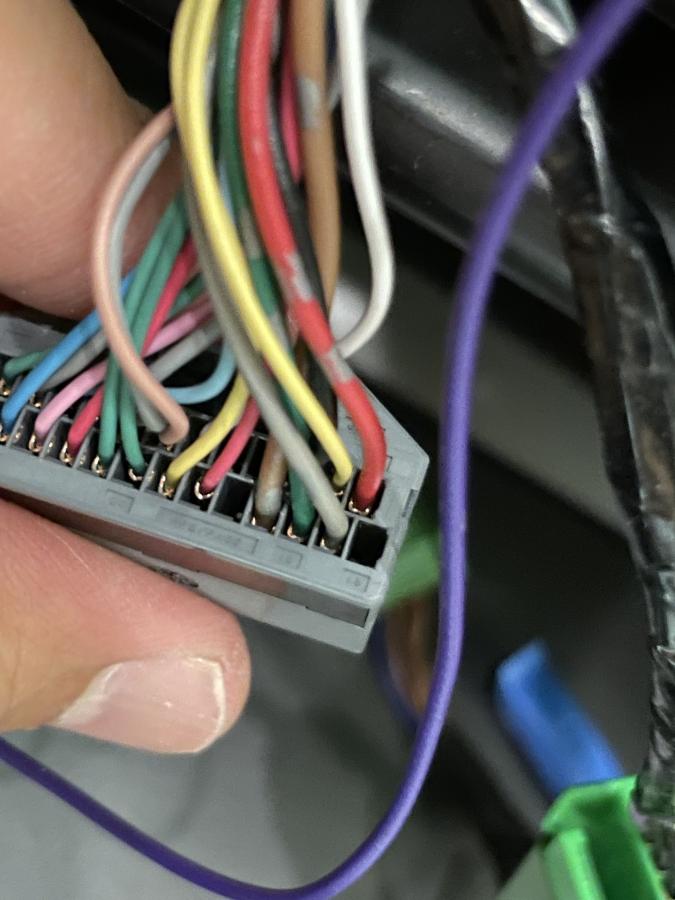

it does have a 32 or 36 pin harness though. I’ll take a look and see if three gray wires at 19-20. Is the reverse wire thicker than other wires by chance?
Comment
-
While looking at the diagram online, I could only find 1 REV wire by the radio. It was behind the top display on that pin 20 as mentioned above. I also traced it back to a 16 pin behind the radio if you see that one. It is Pin 15 on that 16 Pin Connection and it's a Grey Wire. It would be in between an empty pin slot and a pink wire.
The REV wire is typically the same size as the other wires. Not a thick or small gauge, they are typically the same size as the standard wires in the harness.
Please note that if you start tagging random wires behind the radio based on color, you run the chance of damaging the VLine or the radio.
I would recommend pulling the display and tagging Pin 20 or looking for that 16 Pin Connection and tagging Pin 15. If you want to test other wires behind the radio, I would recommend buying a simple multimeter and testing that Reverse = 12V DC and Park = 0V DC.
Comment
-
After testing all pins with a multimeter, it wasn't any of the above or either of the 2 diagramed PDFs that were sent over. I did finally figured out the reverse wire- But you need to let the system load completely if you are cold starting, or else you will see double images. Anyone looking to install this system on your own- make sure you know what you are doing before installing as GROM support will not respond quickly to any posts/requests. And most likely, the information that is provided that you'll be relying on will not be correct. Good luck on your install-
Comment
-
Originally posted by qakewalk View PostAfter testing all pins with a multimeter, it wasn't any of the above or either of the 2 diagramed PDFs that were sent over. I did finally figured out the reverse wire- But you need to let the system load completely if you are cold starting, or else you will see double images. Anyone looking to install this system on your own- make sure you know what you are doing before installing as GROM support will not respond quickly to any posts/requests. And most likely, the information that is provided that you'll be relying on will not be correct. Good luck on your install-
Did you tap in the same wire in the video?Product: HON3VL2 on Acura TLX
Comment
-
Originally posted by numb3rs View Post
I followed this tutorial for the installation and got it correct https://www.youtube.com/watch?v=UrDlJzuqIb8
Did you tap in the same wire in the video?
Comment
-
I could only find 1 REV wire by the radio.It was behind the top display on that pin 20 as mentioned above.
I also traced it back to a 16 pin behind the radio if you see that one. It is Pin 15 on that 16 Pin Connection and it's a Grey Wire.
It would be in between an empty pin slot and a pink wire.
The REV wire is typically the same size as the other wires.Not a thick or small gauge, they are typically the same size as the standard wires in the harness.
Please note that if you start tagging random wires behind the radio based on color, you run the chance of damaging the VLine or the radio.
I would recommend pulling the display and tagging Pin 20 or looking for that 16 Pin Connection and tagging Pin 15.
